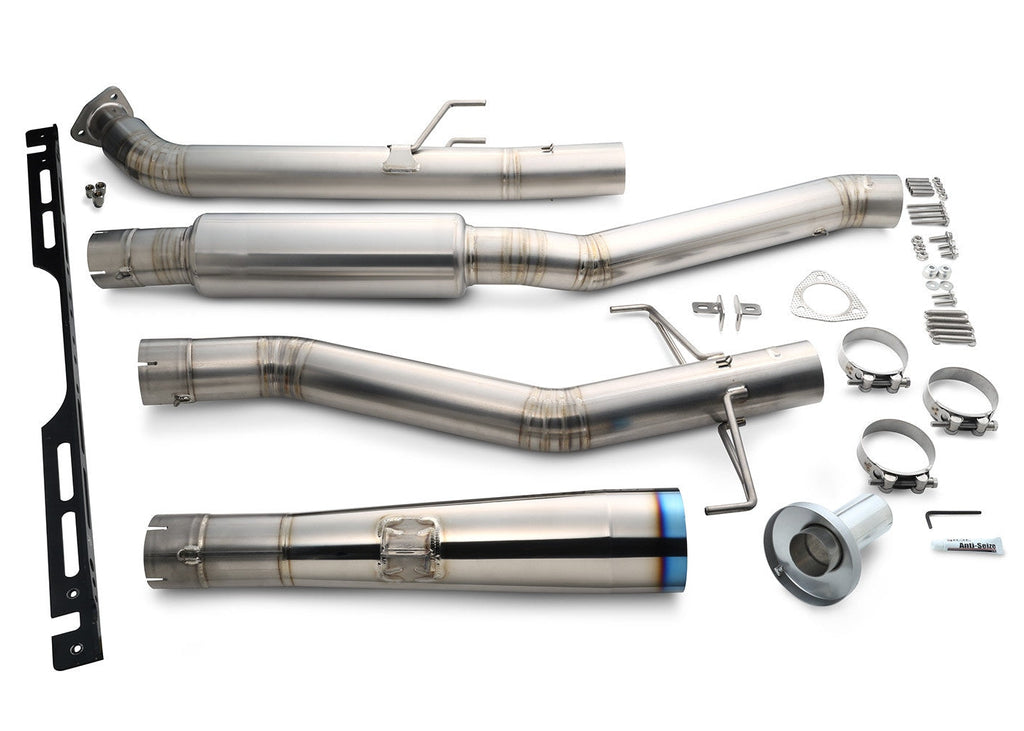

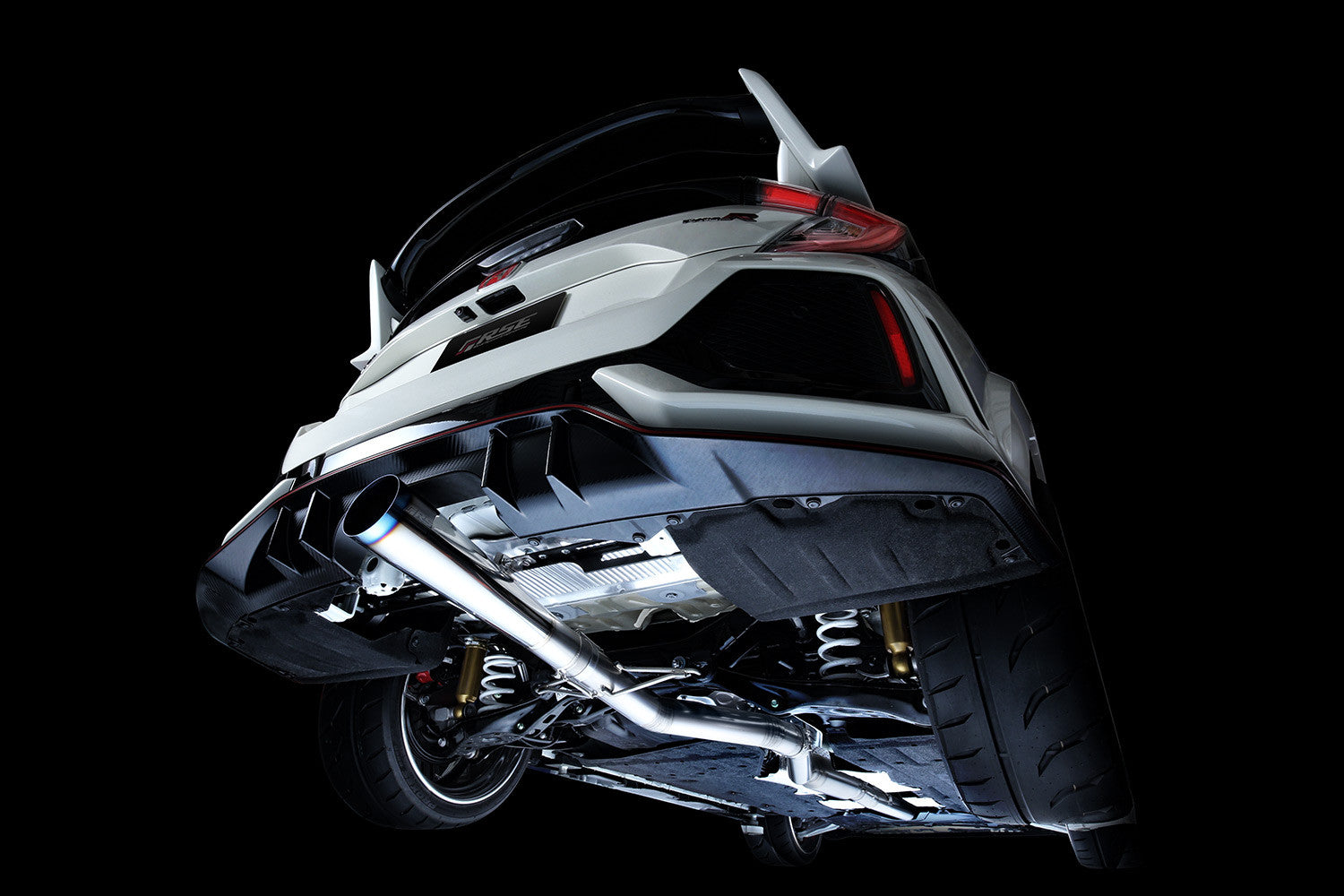

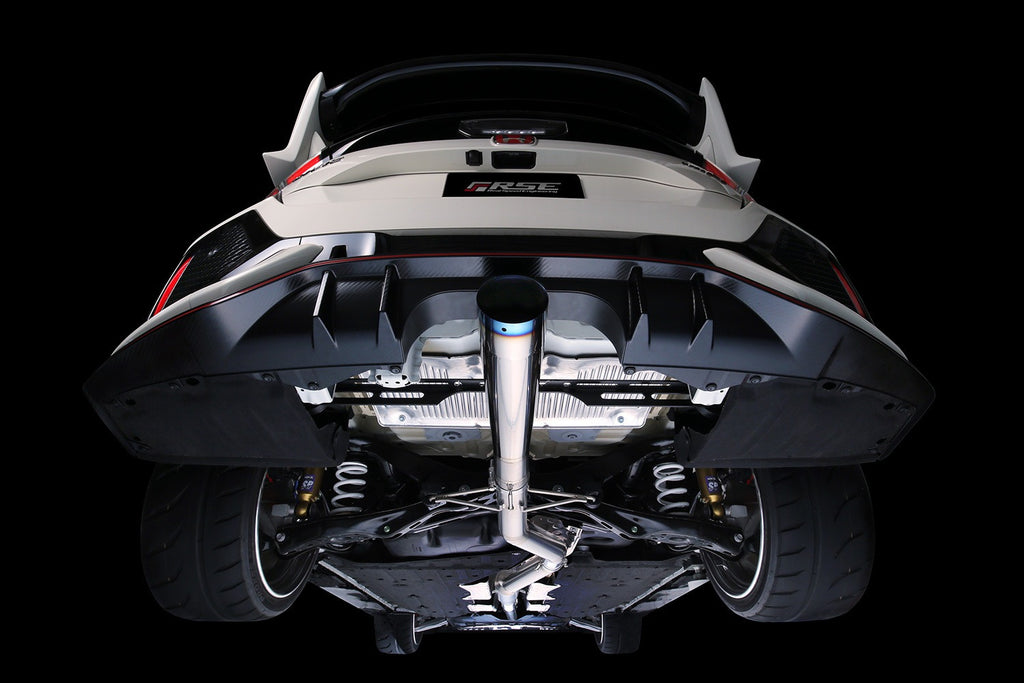

FULL TITANIUM MUFFLER CIVIC TYPE-R FK8 TYPE-R (SINGLE) ( RB6090-HN06A )

FULL TITANIUM MUFFLER CIVIC TYPE-R FK8 TYPE-R (SINGLE) ( RB6090-HN06A )

FULL TITANIUM MUFFLER CIVIC TYPE-R FK8 TYPE-R (SINGLE) ( RB6090-HN06A )

FULL TITANIUM MUFFLER CIVIC TYPE-R FK8 TYPE-R (SINGLE) ( RB6090-HN06A )

FULL TITANIUM MUFFLER CIVIC TYPE-R FK8 TYPE-R (SINGLE) ( RB6090-HN06A )

FULL TITANIUM MUFFLER CIVIC TYPE-R FK8 TYPE-R (SINGLE) ( RB6090-HN06A )

PART NUMBER : RB6090-HN06A

FULL TITANIUM MUFFLER CIVIC TYPE-R FK8 TYPE-R (SINGLE) ( RB6090-HN06A )

Compatibility

Manufacturer	engine	Model
HONDA	K20C	FK8 Civic Type-R

TYPE	TYPE-R	TYPE-D
Part Number	RB6090-HN06A	RB6090-HN06C	-
material	Titanium		steel
Main pipe diameter	80.0mm		57.0mm

Main pipe thickness	1.0mm		1.5mm

No. 1 Center	-		120.0mm
Silencer diameter
No. 2 Center	118.0mm		138.0 x 125.0 mm
Silencer diameter
No. 2 Center	1.0mm		-
Silencer thickness
Main silencer diameter	152.0mm	152.0mm x2	L/R: 235.0 x 120.0 mm
			C: 150.0 x 125.0 mm
Main silencer thickness	1.0mm		-

Outlet diameter	115.0mm	115.0mm x2	Outer diameter: 90.0mm
			Inner diameter: 86.3mm
Outlet thickness	1.0mm		-
Flange thickness	8.0mm		3.2mm
weight	7.0kg	13.3kg	17.5kg
