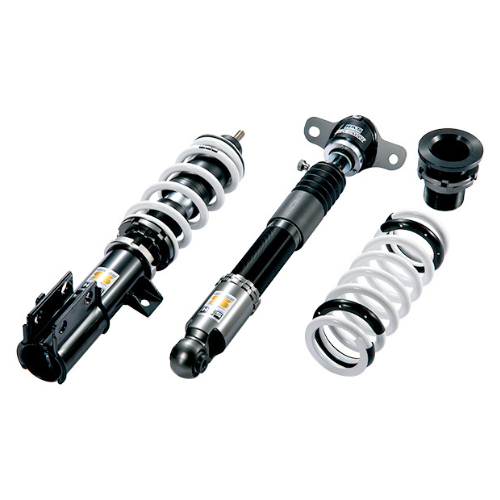

📌 PRODUCT CODE : 80300-AT025
Point
・Without sacrificing the stock ride quality, we have achieved a well-balanced level of ride comfort and sports performance, such as roll rigidity
・Damp force characteristics for smoothly driving on street and firm tenacity during fast corning are what we pursued. The stability and controllability at the limit range are much improved.
・After testing several different spring rates, the spring rate is set up to target from driving on the street to winding roads+α.
・If you are planning for hill climbs, mini track, or using high grip tire, we recommend you increase the spring rate.
・Please note that the free length of the spring will be changed for both F and R when the rate is increased. (*) Recommended damp force adjustment setting for rate up is Front: D=15 / Rear: D=13.
・If you are looking for sport driving, we recommend you set the rear toe out, which makes understeer hardly occur, allowing the driver to accelerate earlier while cornering. It improves the vehicle motion control.
・High durability of 3-year/60,000 km coverage has been achieved by reviewing internal components.
Â
Recommended range of N/mm (kgf/mm) when changing spring rate: *In case of rate increase, change the length to F=78(8)-170 / R=69(7)-220.
