PART NUMBER : 15004-AS102
HKS OIL COOLER KIT FOR ZC33S ( 15004-AS102 )
■Product Development Concept

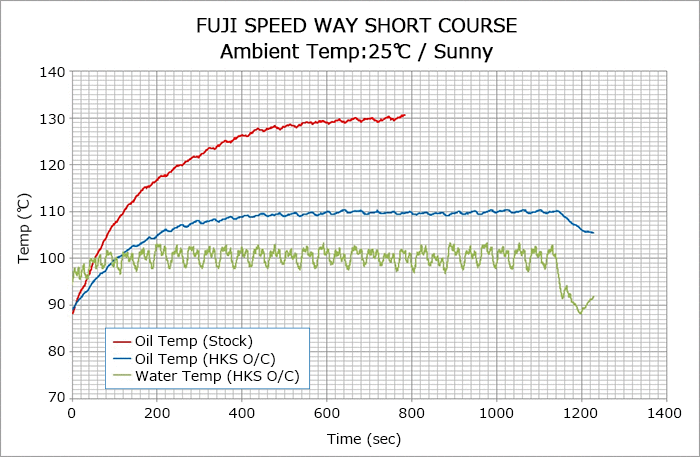

The K14C turbo engine generates 140ps even only with 1.4 displacement. To stabilize the engine performance under street use, a water-cooled oil cooler is equipped. However, for driving on a winding road or circuit, the stock water-cooled oil cooler cannot perform sufficient heat exchange so the oil temperature is increased to 120℃ only after 5-minute driving and reaches to 130℃ afterwards.
Adding HKS air-cooled oil cooler with a special air guide improves the heat exchange performance to maintain the optimal engine oil temperature. This kit allows longer sport driving with a reliable heat exchange performance.

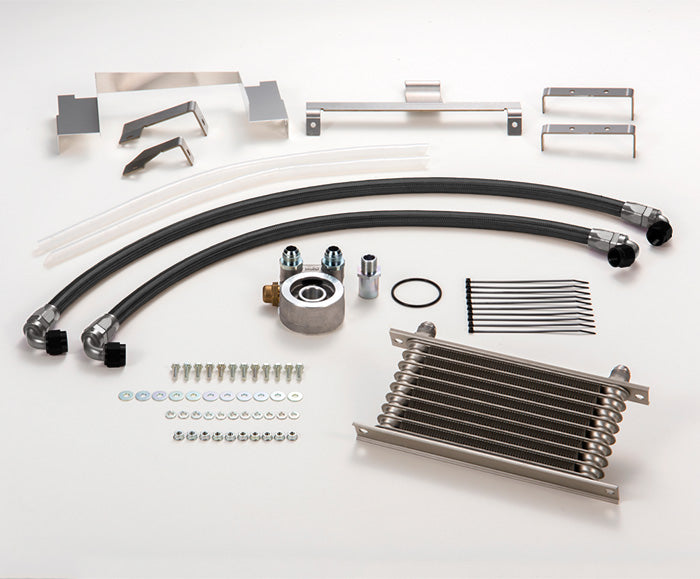

■Features

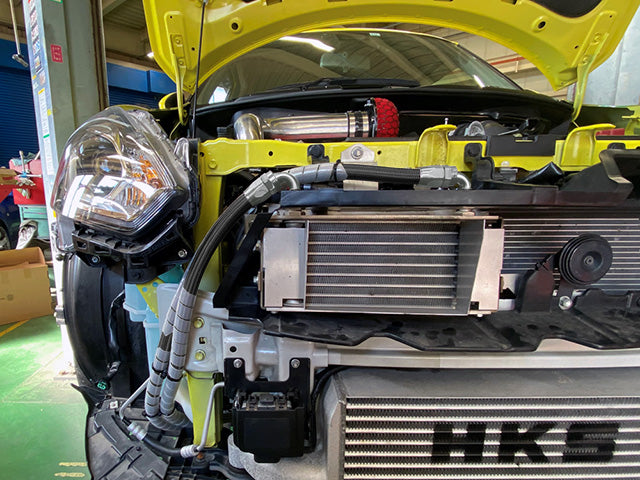

- A compact 32mm 9-layer oil cooler core is utilized to mount it to a limited space in front of the radiator maintaining the optimal radiator's cooling performance
- A special air guide is designed exclusively for this model to maximize the oil cooler core's heat exchanging capacity.
- A high pressure-resistant black mesh hose is included.
- A thermostat to prevent overcooling of the oil is include.
- A PT1/8 sensor installation hole is in the filter mount.
- Modification of the stock parts is minimized. (Cutting a part of the plastic radiator guide is required.)
