PART NUMBER : 13001-AH004
HKS R-TYPE INTERCOOLER WITH PIPING KIT FOR CIVIC FK8 ( 13001-AH004 )
【CONCEPT】
- The K20C engine achieves 320ps with 2.0L displacement, and the boost pressure exceeds 150kPa. Since the stock intercooler’s capacity is insufficient, the engine intake air temperature rises to nearly 90℃.
→HKS intercooler is using a larger size intercooler to maintain cooling performance.
- The stock intercooler piping layout has a sharp bend so the intake air does not flow smoothly and causes the boost pressure loss.
→HKS intercooler integrates the inlet side tank of the intercooler and pipe to realize a smooth air flow and reduce air intake loss.
【Features】
- Newly designed 100mm wide core is approximately 200% of the stock in the core capacity. This large core shows overwhelming cooling performance difference.

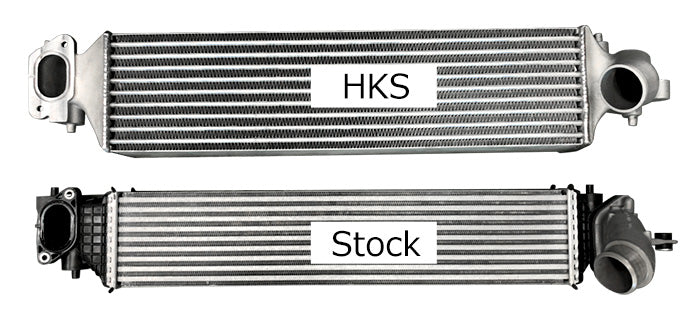

Core Size ★HKS：695mm x 178mm x 100mm ★Stock：680mm x 143mm x 64mm
- Minor modification of the fan shroud and rubber part that comes in contact with the core is required.
